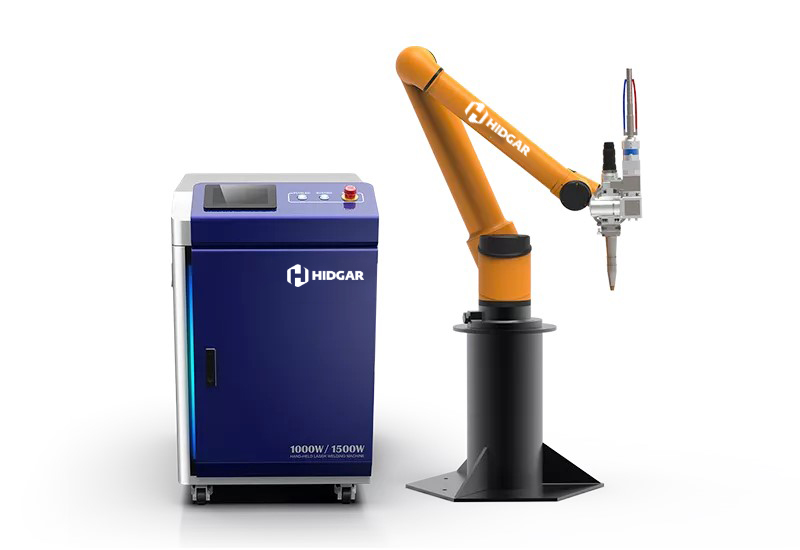

Automatic Laser Welding Machine Collaborative Robot

Features: offers welding, cutting, and cleaning with ease. It’s ultra-light design and double lenses cut down on maintenance costs.

Flexible, efficient and free welding process

Higher welding stability and consistency

Reduce welding damage to human body

Description

Automatic Laser Welding Machine Collaborative Robot

Model No.	DT-1000HJ	DT-1500HJ	DT-2000HJ	DT-3000HJ
Laser power supply	1000W	1500W	2000W	3000W
Laser welding ability	Carbon steel: 3mm Stainless steel: 3mm Aluminum: 1mm	Carbon steel: 4mm Stainless steel: 4mm Aluminum: 2mm	Carbon steel: 5mm Stainless steel: 5mm Aluminum: 3mm	Carbon steel: 8mm Stainless steel: 8mm Aluminum: 6mm
Operating mode	Continuous / Modulation
Power adjustment range	10%-100%
Output central wavelength	1070±20nm
Cooling method	Water cooling
Welding line requirements	≤0.5mm
Welding speed	0-120mm/s
Upgrade	Smoke Purifier

6-axis human-robot collaboration robotic arm

Collaborative robots can effectively cope with laser welding operations, helping to achieve flexible, efficient and free welding processes.

Automatic laser welding head

Fast and efficient, wide processing range: automatic laser welding machine has concentrated energy, high-efficiency and high-speed welding, smooth and beautiful welds, and reduce subsequent grinding processes.

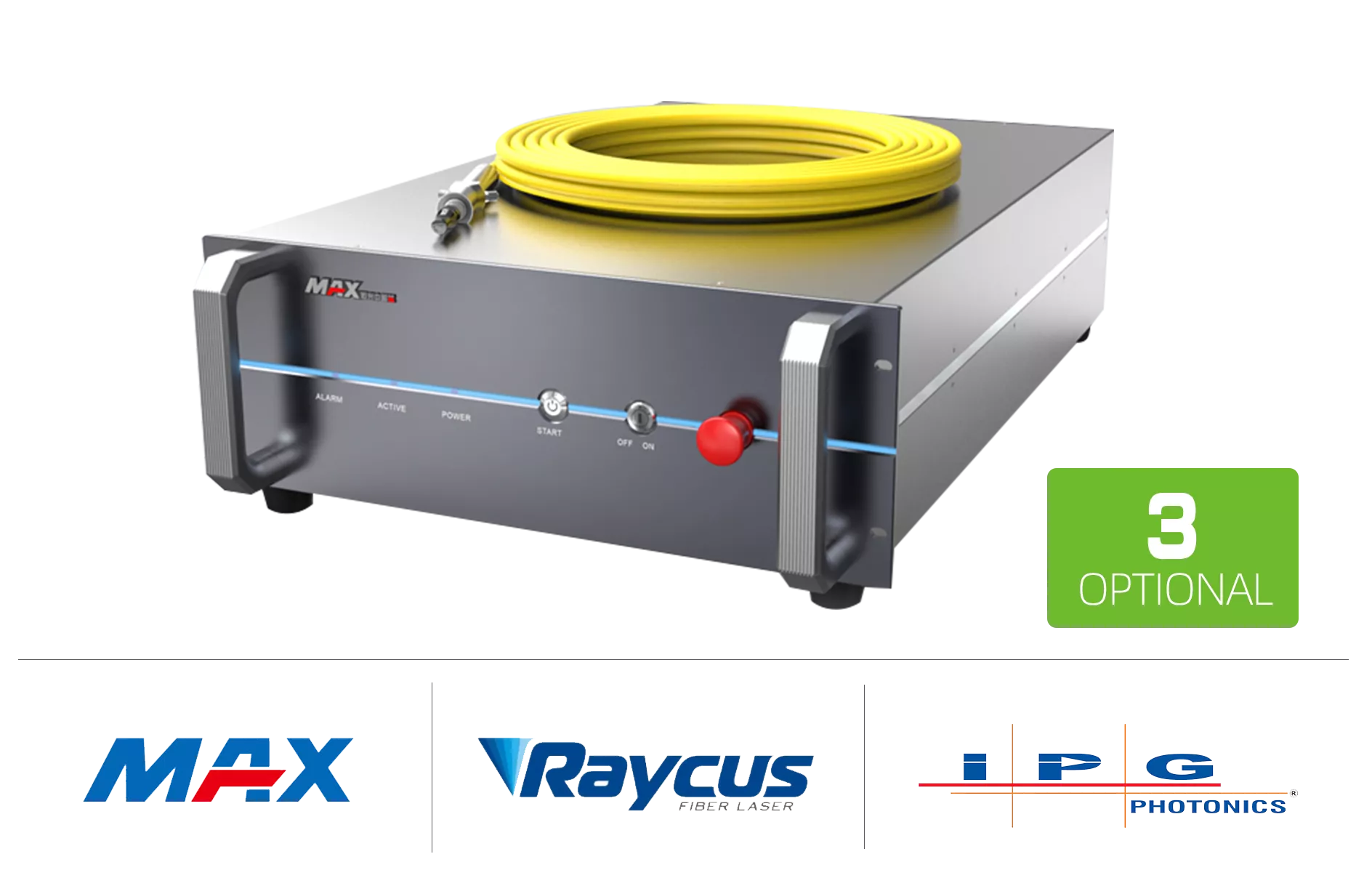

Laser Source

Raycus/MAX/IPG, multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness.

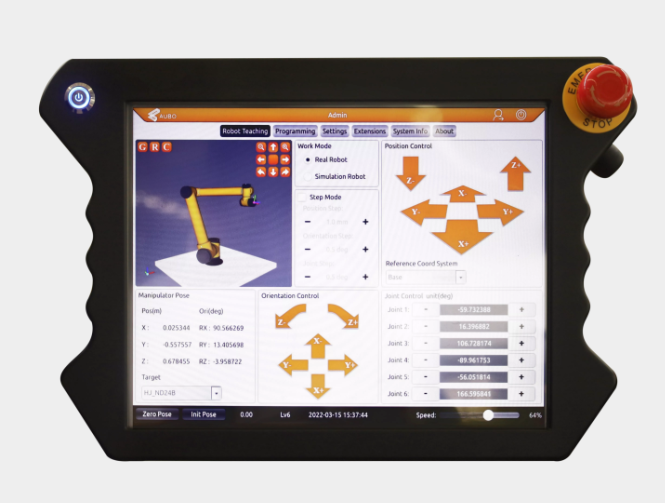

Smart control system

High-end intelligent system, stable and reliable, easy to use, rich in functions, suitable for various processing occasions. It supports modular, personalized, automated, and informatized solu tions.
