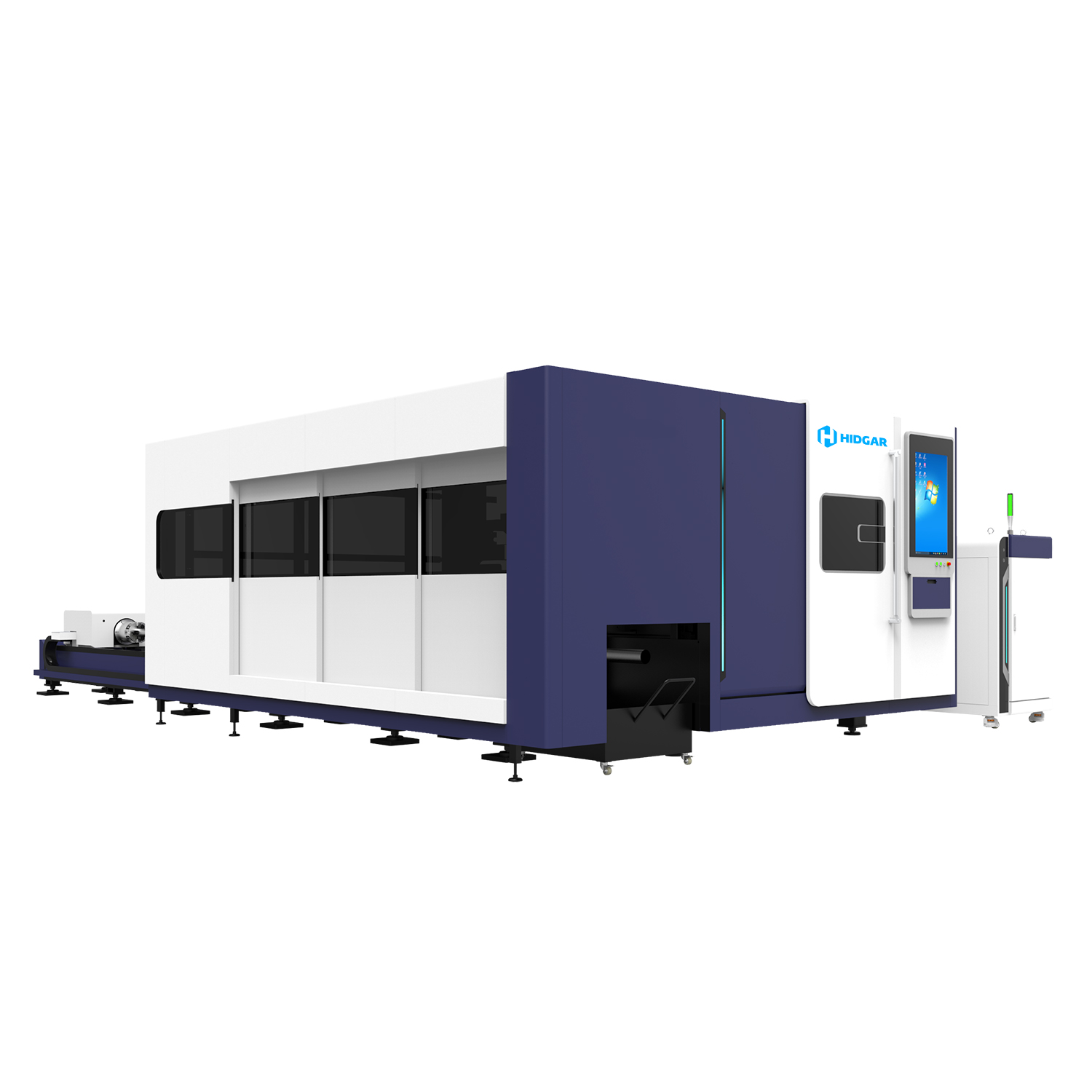

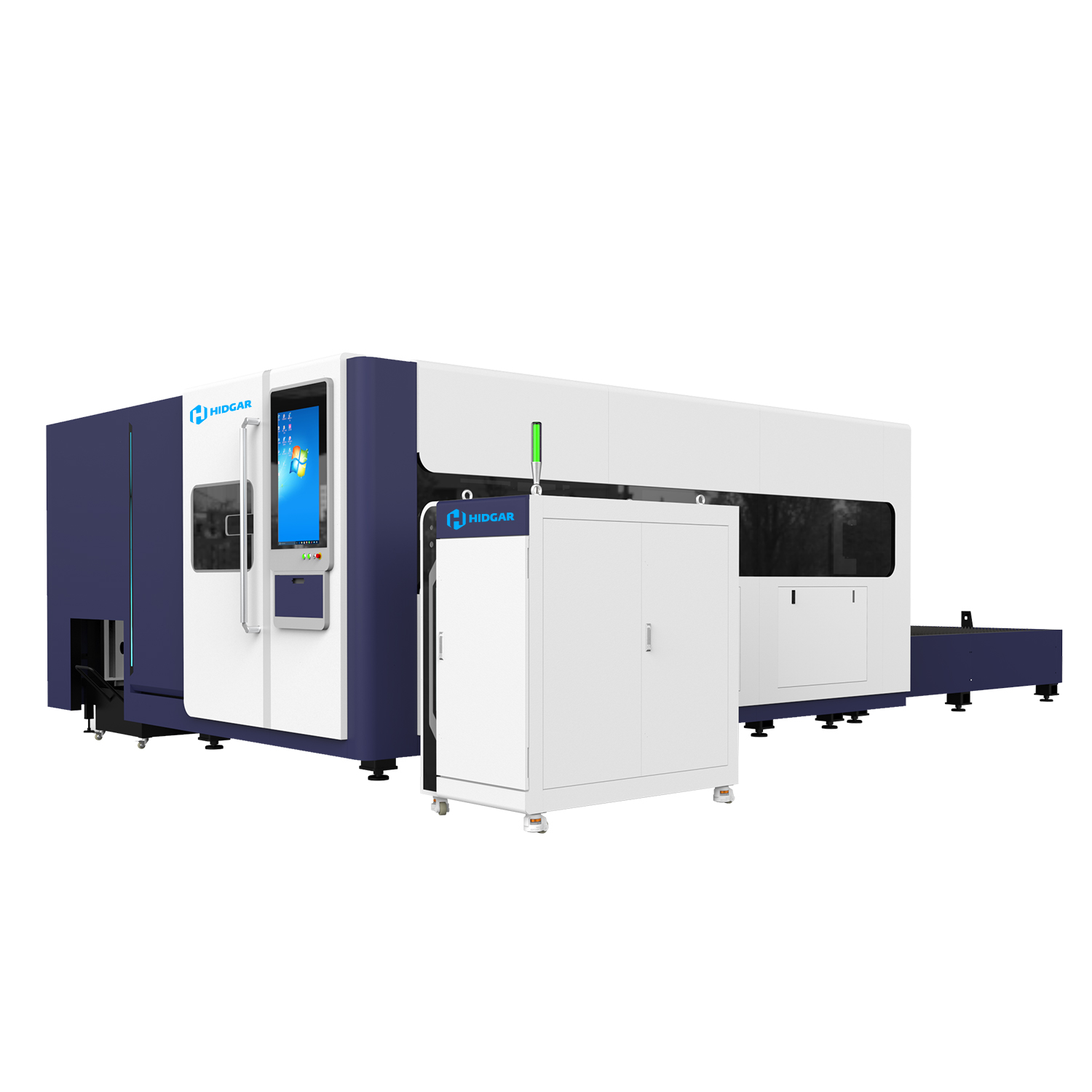

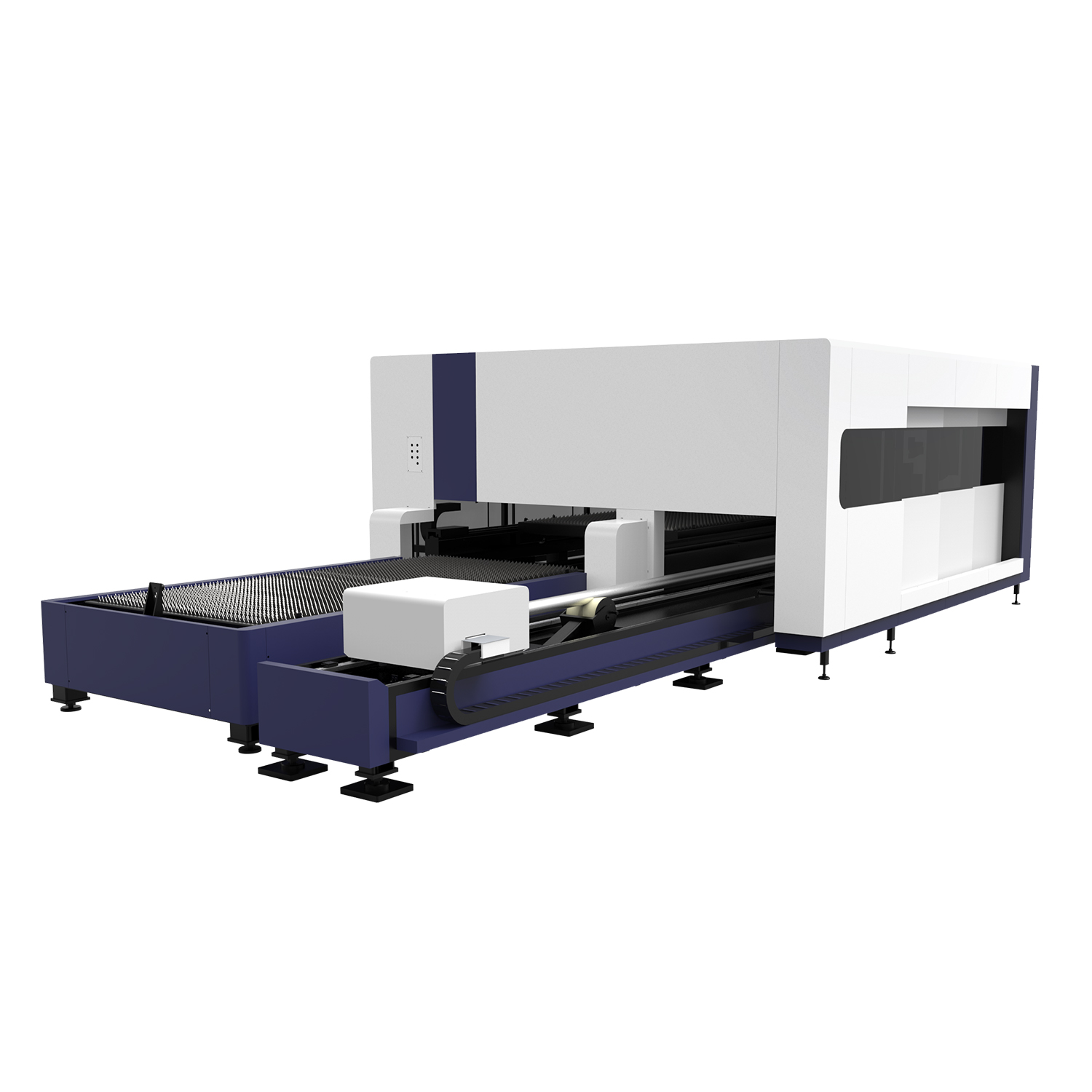

Dual-Use Sheet Tube Fiber Laser Cutting Machine

Features:It can handle both sheet and tube materials, saving space and money on extra machines. The laser provides clean cuts with smooth edges, minimizing the need for further processing.

User Friendly

clean cuts with smooth edges

Supports cutting of different diameters pipes

Description

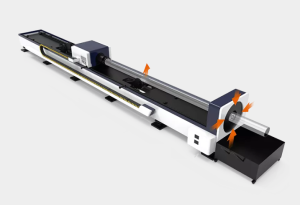

Double Fully-Automatic Pneumatic Chucks

High-precision clamping for precise cutting.
Efficient operation, quick response, and improved production efficiency.
The performance is stable and reliable, ensuring durability and reducing maintenance costs.
It has strong adaptability to various pipe materials and meets diverse cutting needs.

High Quality Carbon Steel Plate Welding Machine Bed

Robust stability & rigidity for high-speed and precise cutting.
Excellent corrosion & wear resistance in tough environments.
High precision & reliability for complex processing needs.
Easy maintenance with low costs and simplicity.

Auto Focus Laser Head

Adjustable Focal Length: Quickly adjusts to accommodate different power handling needs.
Autofocus Function: Enables fast and accurate focusing.
High-Precision Design: Achieves a focusing speed of 100 m/s with a repeatability of 1 μm.
IP65 Dust-Proof Standard: Equipped with a patented protective mirror cover for complete dust protection without blind spots.
Multiple Protection Mechanisms: Includes three protective lenses and a two-way optical water-cooling system.
Corrosion & Wear Resistance: Provides durability in tough environments.
High Precision & Reliability: Ideal for complex processing needs.

Intelligent Operating System

Automatic Nesting Function: Automatically optimizes cutting layout for efficiency.
Wireless Handle Control: Offers flexible and convenient operation.
File Compatibility: Compatible with various common file formats, such as DXF, PLT, etc.
Simple Operating System: Easy to use with fast, intuitive controls.
Accurate Cutting Instructions: Ensures high cutting accuracy and quality.

TECHNICAL PARAMETERS

Type	F-BT	FE-BT	FE-BST
Working area	30001500mm / 40002000mm / 60001500mm / 60002500mm	30001500mm / 40002000mm / 60001500mm / 60002500mm	30001500mm / 40002000mm / 60001500mm / 60002500mm
Laser output power	1500w / 2000w / 3000w / 4000w / 6000w /12000w / 20000w	2000w / 3000w / 6000w / 12000w / 20000W / 30000W / 40000w / 50000w	2000w / 3000w / 6000w / 12000w / 20000W / 30000W / 40000w / 50000w
Positioning accuracy	0.05mm	0.05mm	0.05mm
Repositioning accuracy	0.03mm	0.03mm	0.03mm
Round tube cutting diameter	20mm~230mm	20mm~230mm	20mm~230mm
Square tube cutting diameter	20mm~140mm	20mm~140mm	20mm~140mm
Upgrade		60r/min
Equipment size	Fully enclosed	Air Conditioner, Smoke Purifier, Air Compressor,Voltage Regulator, Safety Light Curta
