Features:controlled using a numerical control system to feed the pipes these pipes can be intelligently divided
Cutting-Edge Technology
One-Stop Laser Solutions
Tailored to Your Needs

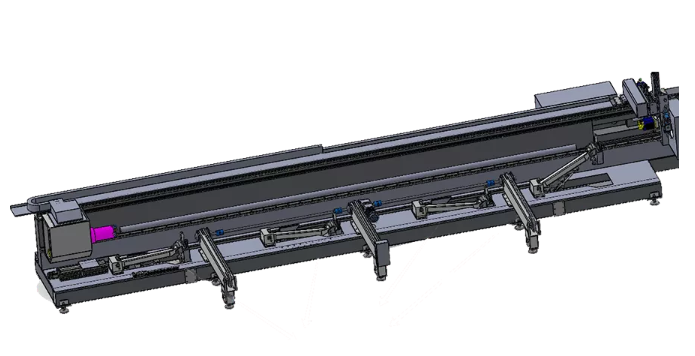

High rigidity frame shows more dynamic performance. Smooth operation and no vibration during high-speed cutting.

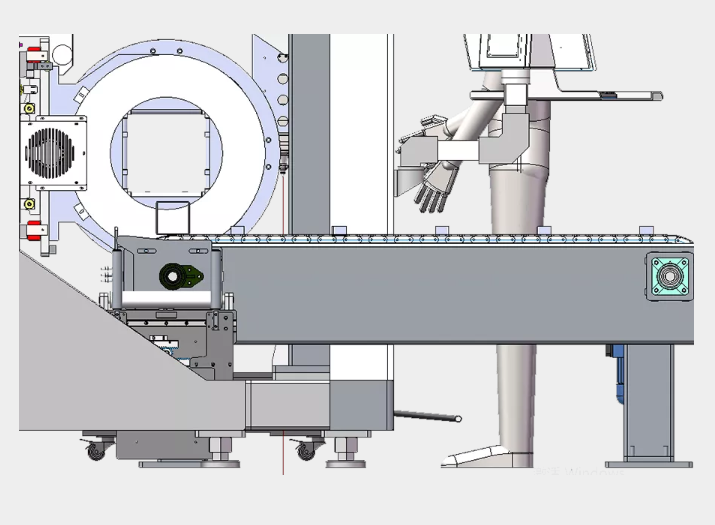

Front card mobile front chuck design, tail material can reach 50mm. For the cutting conditions of longer finished pipes, the pipe support force is more reasonable and the clamping is more stable. Compared with traditional cutting methods, cutting accuracy and quality are more guaranteed.

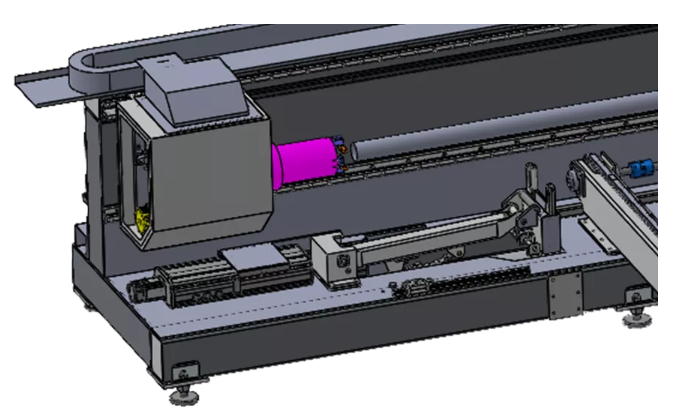

Sets a centering mechanism, top material correction, automatic centering, freeing hands. Adopts four sets of servo follower devices
Realizes fast feeding of pipes, stable lifting, and automatic centering. Batch processing improves work efficiency.

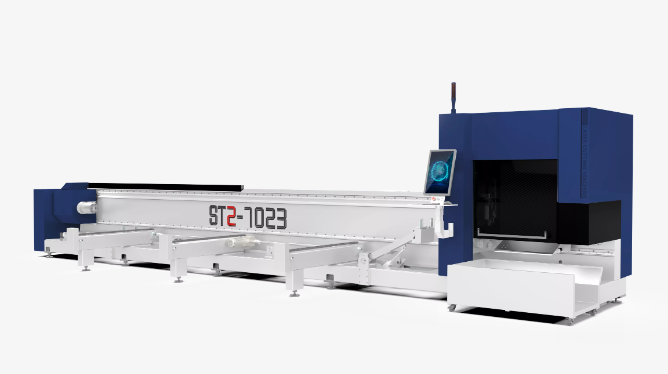

| Mode | ST2-7016 | ST2-7023 |
|---|---|---|
| Min Diameter | Φ15mm □15mm | Φ15mm □15mm |
| Max Diameter | Φ160mm □116mm | Φ230mm □160mm |
| Laser Power Supply | 3000w | 3000w |
| Maximum Acceleration | 1G | 1G |
| Positioning Accuracy | ±0.03mm | ±0.03mm |
| Voltage | 380V 3PH 50/60HZ | 380V 3PH 50/60HZ |
| No-load speed | 60r/min | 60r/min |
| Equipment size | 9.7mX2.2mX2.1m | 10mX2.5mX2.3m |
