| Model | Bending Force | Bending Length (A) |
Oil Tank | Aprroaching Speed | Ram Speed | Return Speed | X-axis stroke | X-axis Speed | R-axis stroke | R-axis Speed | Column Distance (B) |
Throat Depth (D) |
Stroke (C) |
Daylight (E) |
Step/Servo Motor | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Unit | KN | mm | L | mm/S | mm/S | mm/S | mm | mm/s | mm | mm/s | mm | mm | mm | mm | KW | Ton | L×W×H mm |
| 50T/1300 | 500 | 1300 | 170 | 160 | 13 | 160 | 500 | 350 | 200 | 200 | 1120 | 250 | 150 | 460 | 5.5/6 | 4 | 1800*1500*2300 |
| 50T/2000 | 500 | 2000 | 170 | 160 | 13 | 160 | 500 | 350 | 200 | 200 | 1600 | 250 | 150 | 460 | 5.5/6 | 4.3 | 2600*1500*2300 |
| 70T/1600 | 700 | 1600 | 170 | 220 | 13 | 160 | 500 | 350 | 200 | 200 | 1300 | 300 | 150 | 460 | 5.5/6 | 5.1 | 1800*1600*2500 |
| 70T/2500 | 700 | 2500 | 170 | 220 | 13 | 160 | 500 | 350 | 200 | 200 | 2050 | 300 | 150 | 460 | 5.5/6 | 5.6 | 3100*1600*2500 |
| 70T/3200 | 700 | 3200 | 170 | 220 | 13 | 160 | 500 | 350 | 200 | 200 | 2700 | 300 | 150 | 460 | 5.5/6 | 6.6 | 3700*1600*2500 |
| 80T/2500 | 800 | 2500 | 170 | 220 | 12 | 145 | 500 | 350 | 200 | 200 | 2050 | 300 | 150 | 460 | 7.5/8.7 | 6 | 3100*1600*2600 |
| 110T/2500 | 1100 | 2500 | 170 | 220 | 12 | 160 | 500 | 350 | 200 | 200 | 2050 | 400 | 200 | 480 | 11/10.8 | 7 | 3100*1800*2600 |
| 110T/3200 | 1100 | 3200 | 170 | 220 | 12 | 160 | 500 | 350 | 200 | 200 | 2700 | 400 | 200 | 480 | 11/10.8 | 7.6 | 3800*1800*2600 |
| 110T/4000 | 1100 | 4000 | 170 | 220 | 12 | 160 | 500 | 350 | 200 | 200 | 3100 | 400 | 200 | 480 | 11/10.8 | 8.8 | 4600*1800*2600 |

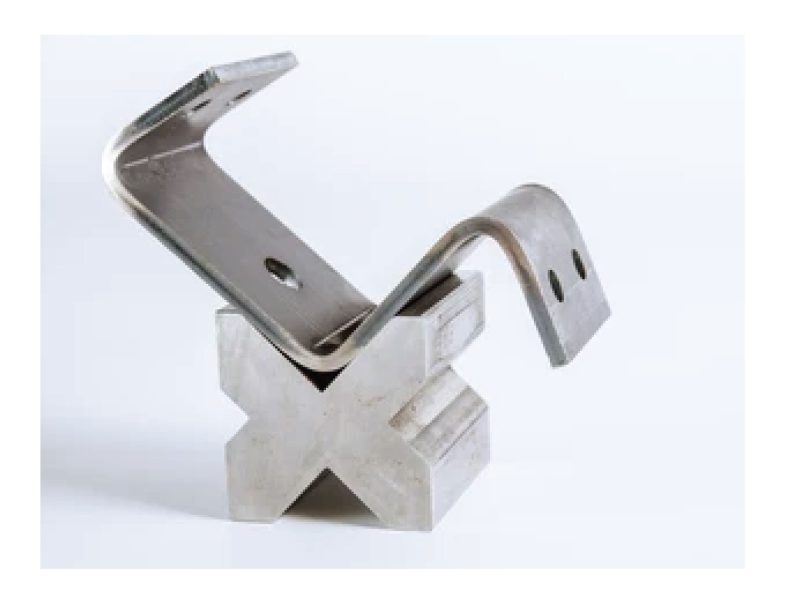

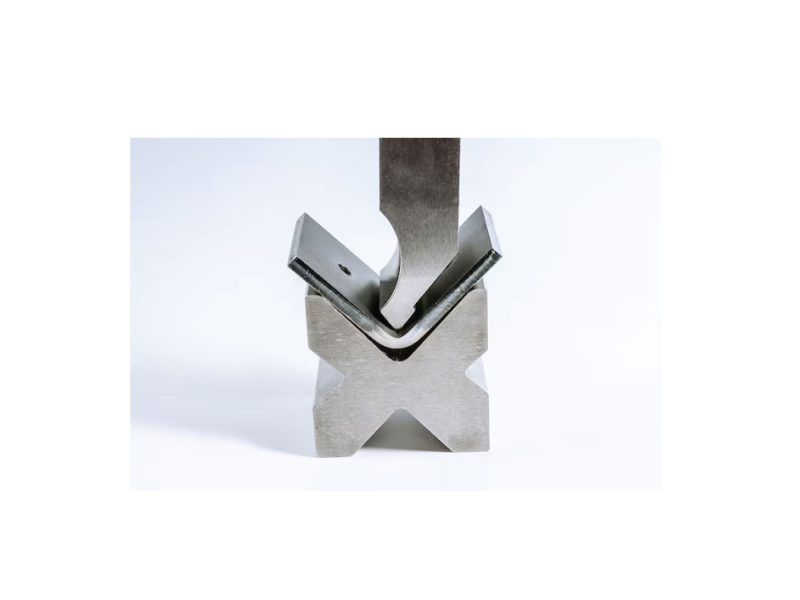

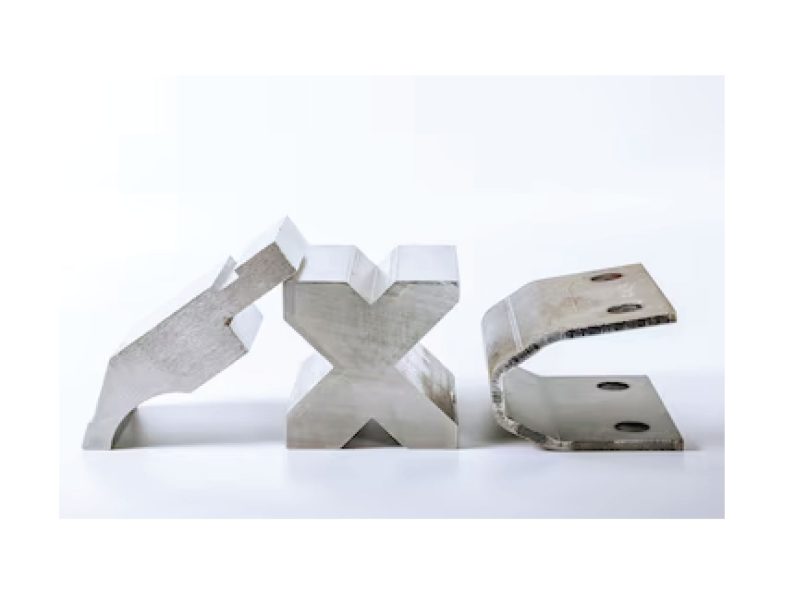

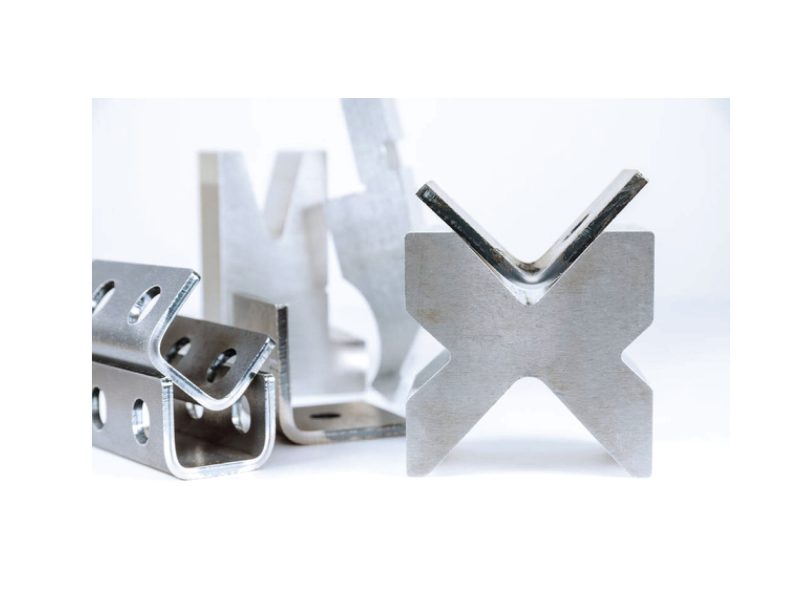

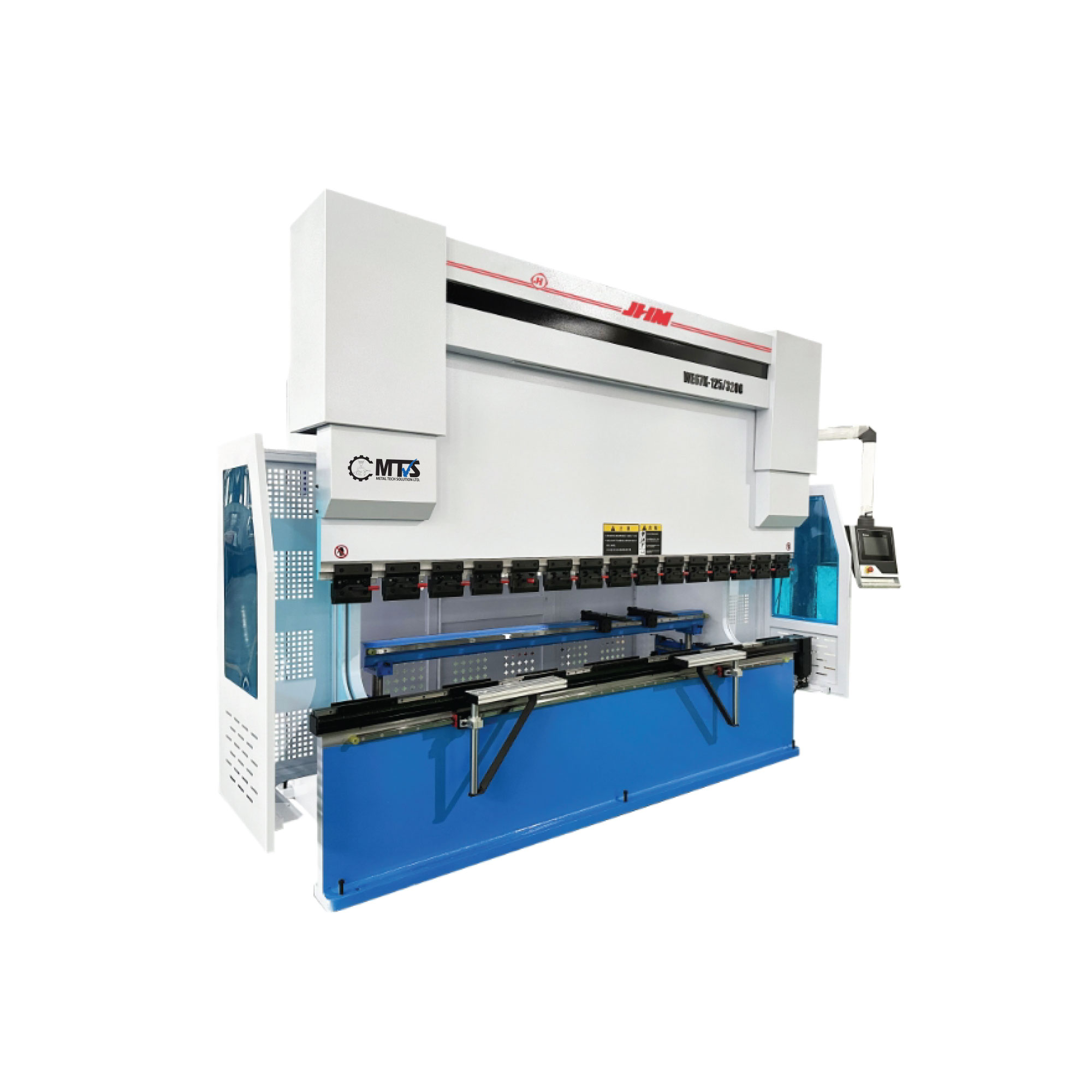

MTS NC Press Brake
The MTS NC Press Brake (Numerical Control) is a hydraulic press brake equipped with a basic programmable control system—commonly brands like Estun E21, Delem DA41, or Cyblec. It offers a budget-friendly stepping stone between manual and fully CNC integrated brakes
Description
Description

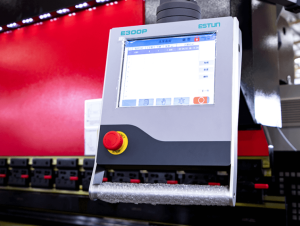

NC Controller
The Estun E300P series controller supports precise control of both the X and Y axes and allows operators to edit bending steps directly from the interface. In addition, controllers like the Estun E300P, Delem DA41T, and Cybelec CT8 feature advanced capabilities such as angle programming, intuitive touchscreen displays, and R-axis control. These features significantly enhance the efficiency, accuracy, and ease of the bending process.
Hydraulic Control System

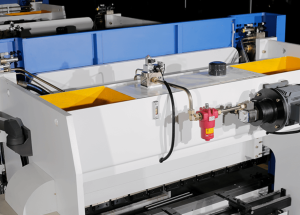

This system features an electro-hydraulic servo mechanism with a synchronized configuration and closely spaced hydraulic cylinders. It delivers exceptional resistance to eccentric loads, precise synchronization, and a high power-to-weight ratio—all while remaining cost-effective. The system’s pressure can be easily adjusted to match specific application requirements, ensuring it provides the necessary bending force for a wide range of tasks.

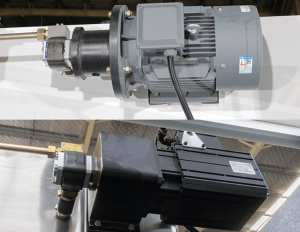

Motor
Servo motors are now widely regarded as the leading solution for enhancing machine performance, offering high dynamic response and significantly improved energy efficiency. When compared to conventional motors, servo systems can reduce energy consumption by up to 35%, helping users lower their operational costs while boosting productivity.
We supply high-efficiency, energy-saving motors from Siemens, Germany—renowned for their reliability and performance. These motors are engineered to meet daily production demands with superior efficiency, contributing to smoother operation and greater overall output.
Oil Pump

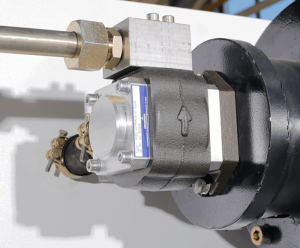

Constructed from durable high-strength cast iron, the oil pump incorporates a specialized internal design that effectively reduces noise. Its robust build makes it more resistant to oil contamination, resulting in extended operational life and reliable long-term performance.
Backgauge

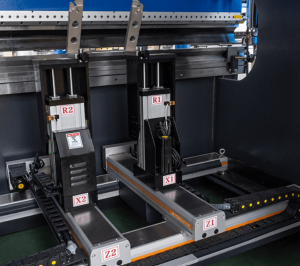

To achieve exceptional X-axis positioning accuracy, our system employs high-quality imported ball screws and linear guide rails, offering a significant upgrade over conventional screw rods. This results in enhanced precision and repeatability during fabrication.
The rear stop is driven by a servo motor and synchronous pulley system, providing more accurate and responsive control than traditional stepper motor setups.
Additionally, the entire backgauge assembly is subjected to a high-temperature tempering process. This treatment relieves internal stress, improves material toughness and ductility, and safeguards long-term accuracy by preventing deformation of the structure.
Electrical Components

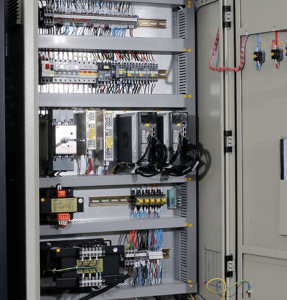

Our equipment is built with genuine Schneider electrical parts from France, known for their exceptional reliability, long lifespan, and stable performance.
In addition, the machine features an original Estun adaptive electrical box assembly, designed for strong anti-interference protection and consistent electrical functionality, ensuring dependable operation in demanding environments.

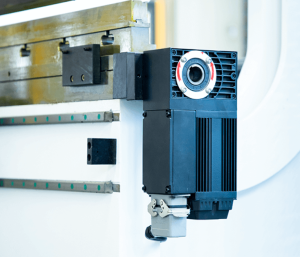

Crowning System
Our proprietary crowning system automatically calculates the required compensation based on the combined deflection of the ram and worktable. By precisely matching the machine’s deformation curve with the compensation curve, it ensures consistent bending angles and excellent straightness across the entire workpiece.
Fast Clamp

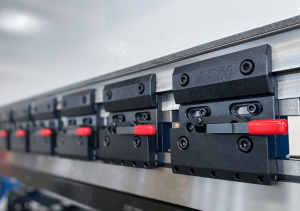

The fast clamp system allows for quick and effortless replacement of the top punch, significantly reducing setup time and enhancing overall operational efficiency.
Ball Screw & Linear Guide Rails

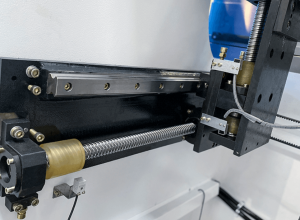

Equipped with precision ball screws and high-quality linear guide rails, the machine delivers smooth, stable, and highly accurate movement—ensuring reliable performance throughout demanding operations.

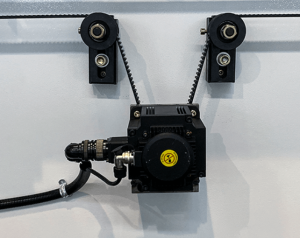

Servo Motor
The Y-axis is driven by a high-precision servo motor, providing exceptional control and positioning accuracy for consistently reliable performance.

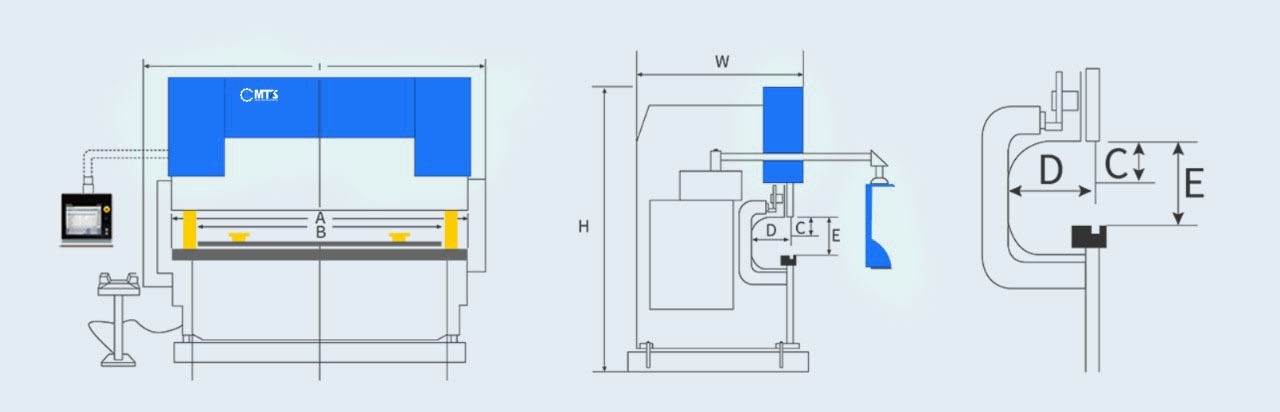

Technical Specifications
For more detailed specifications, please don't hesitate to contact us.
WAD/WADE Series With Step/Servo Motor
