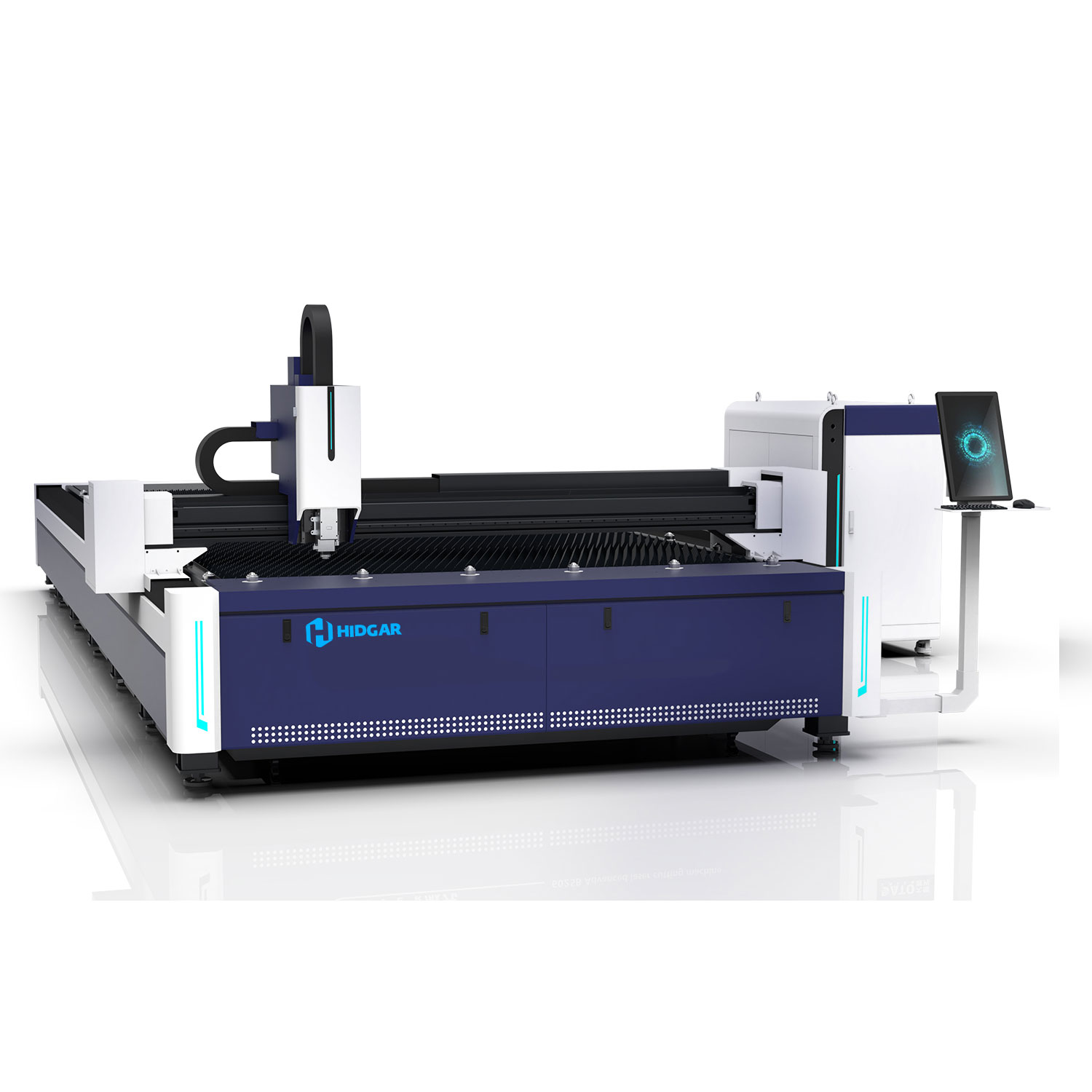

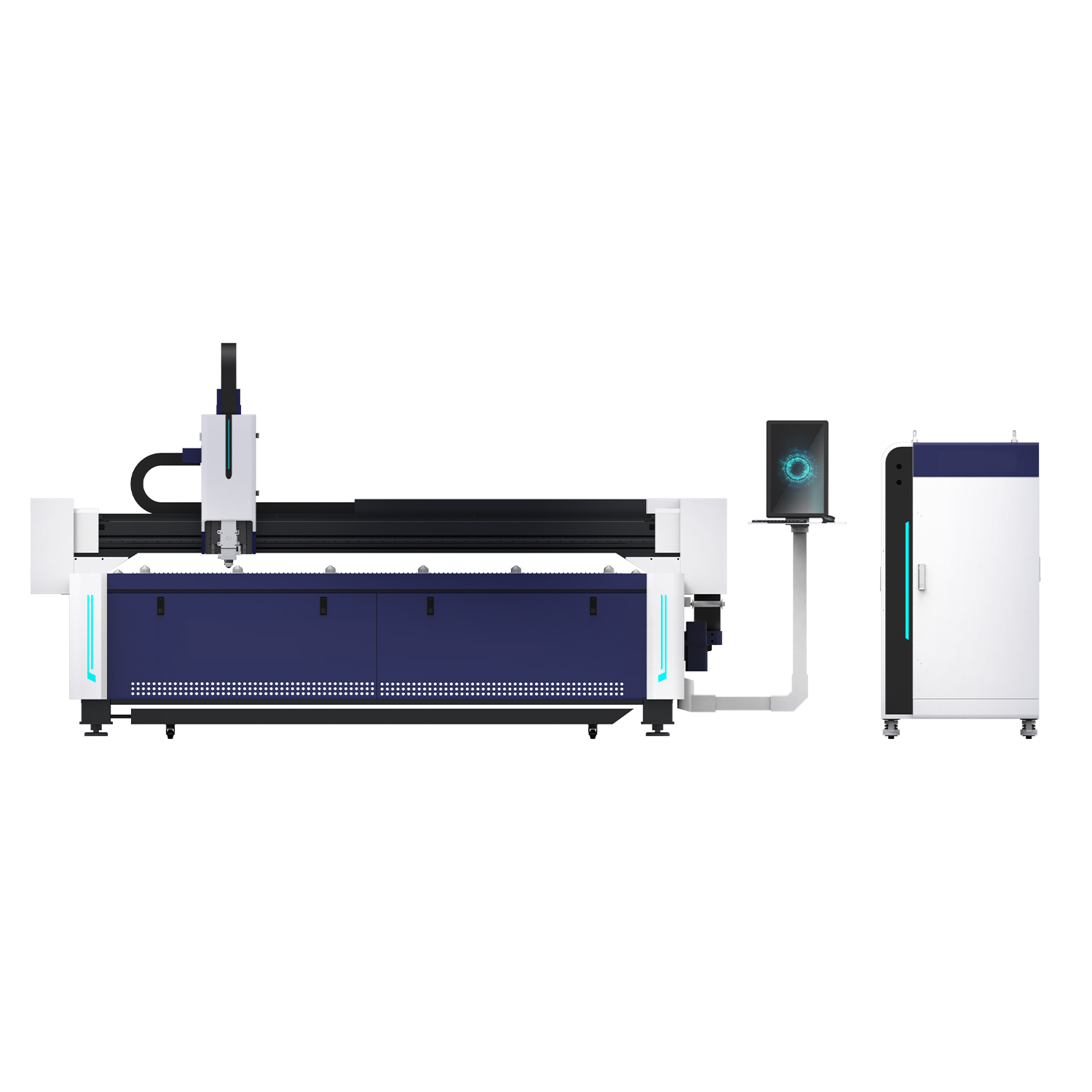

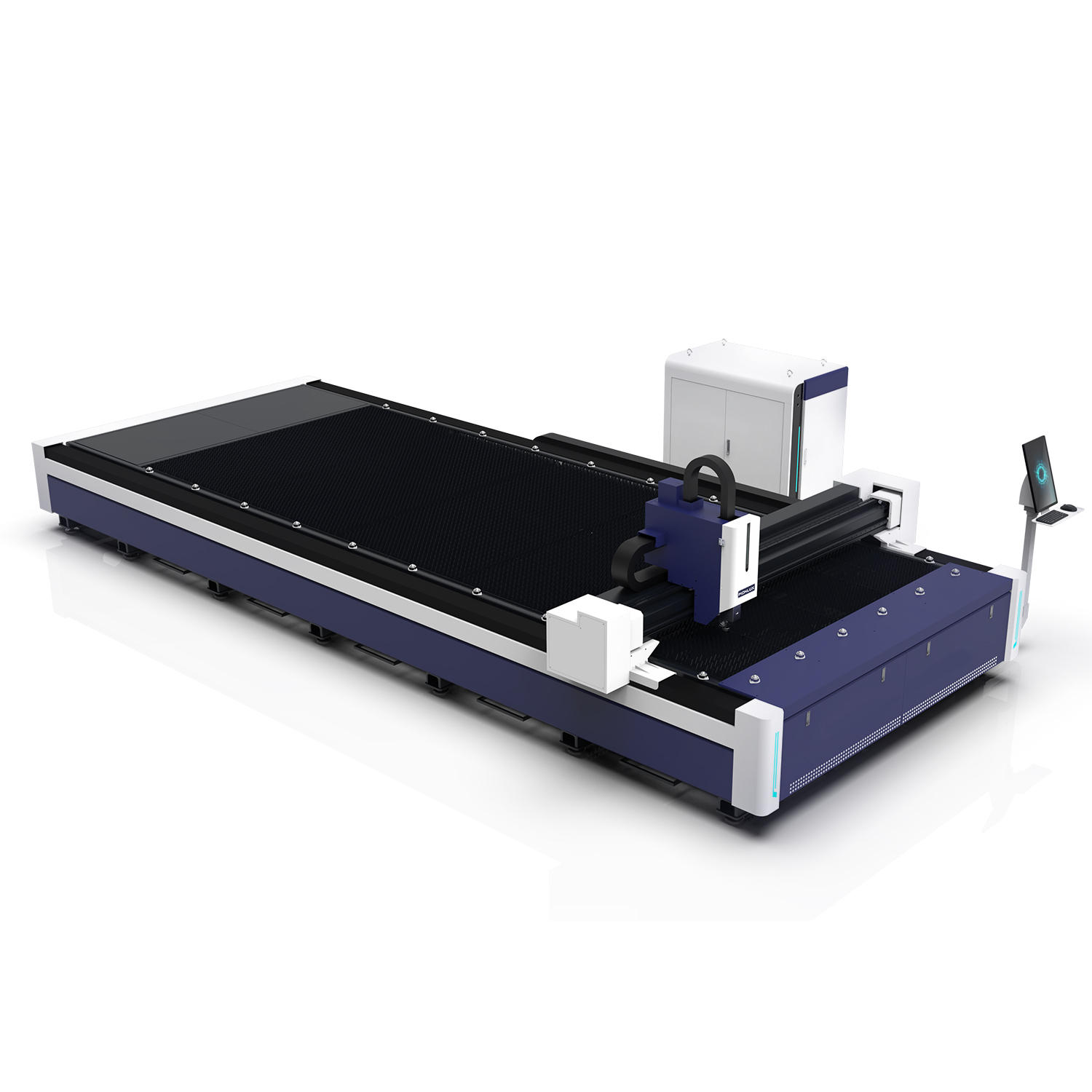

Features: A cost-effective and accurate fiber laser cutter, perfect for small production settings. Its main feature is easy controls design, reducing both operation time and upkeep expenses.
Precision Cutting Made Affordable
Ease of Use for Beginners
Ideal for Small-Scale Metal Work
| Mode | LF-3015B | |||
|---|---|---|---|---|
| Working Area | 3000*1500mm | |||
| X Y Z Axis Stroke | 1520*3100*100mm | |||
| Laser Power Supply | 2000w, 3000w, 6000w, 12000w, 20000w | |||
| Maximum Acceleration | 2G | |||
| Positioning Accuracy | ±0.03mm | |||
| Voltage | 380V 3PH 50/60HZ | |||

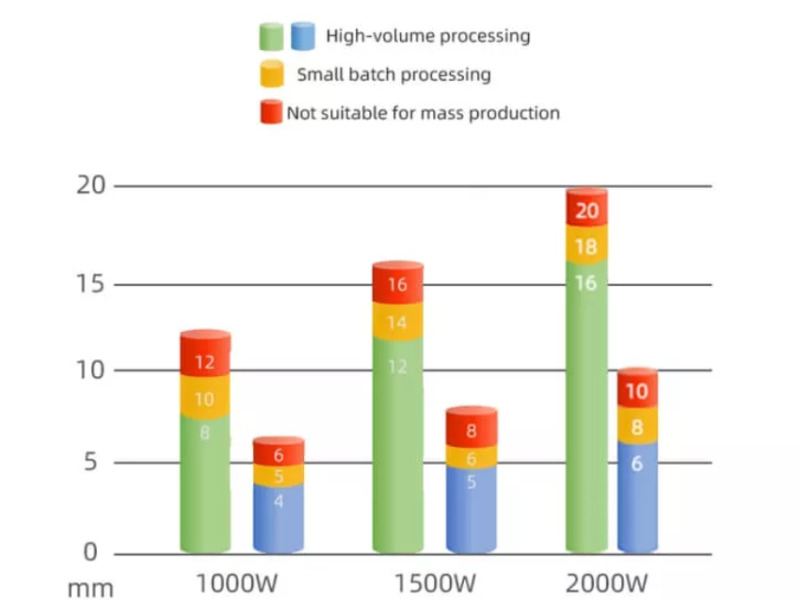

| Cutting Ability | Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm | |||
| Upgrade | Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator | |||
Choose from a range of laser source, control system, and laser cut head for a machine that’s tailored just for you.
Our beam is made from high-grade aluminum. This material is chosen for its strength. It ensures swift and agile cutting motions. Precision is maintained.

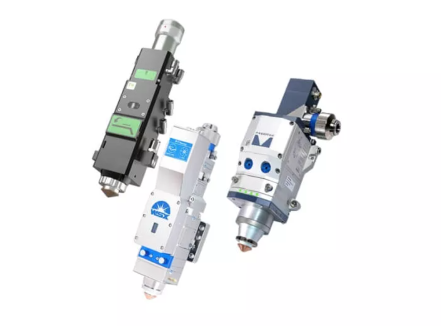

The laser cutting head on our machine is state-of-the-art.
Wireless handheld operation for ease and sensitivity. Perfectly compatible with the latest CNC system software and hardware.
CNC system is cutting-edge. Its 32-inch touch screen improve user experience. Dynamic adjustments make it over 60% quicker than traditional systems.
The electrical cabinet is designed for optimal power management. It ensures that power distribution is efficient. The operation of the machine remains reliable and safe at all times.
A chiller unit is included to regulate the laser’s temperature. Consistent performance is maintained. It also extends the lifespan of the machine. Dependability is enhanced.
Metal Fiber Laser Cutting Machine: Key Parameters.
Laser cut carbon steel
Laser cut carbon steel
Laser cut brass
Laser cut stainless steel
Laser cutting metal
Laser cut aluminum
