Features: Improve material utilization: The three-chuck clamping workpiece reduces the generation of waste and has a high material utilization rate.
High cutting accuracy: Independent follow-up support can stably clamp slender pipes to ensure cutting accuracy.
Cutting-Edge Technology
One-Stop Laser Solutions
Tailored to Your Needs
The unique structural design adopts segmented automatic support device to solve the deformation problem caused by long pipe cutting. It is stable and vibration-resistant. It improves working accuracy and prolongs the service life of the chuck and transmission structure.

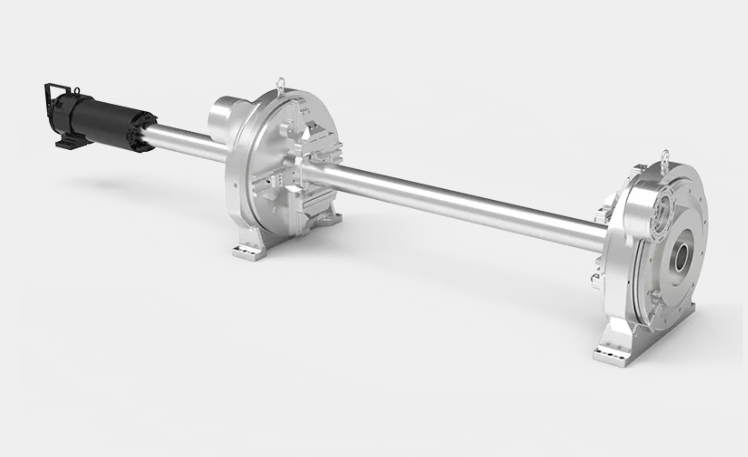

One-button clamping, automatic centering, high degree of automation. Three times faster than electric chuck, saving waiting time. Equipped with clamping claws, saving materials. The clamping strength can be adjusted conveniently and quickly according to the thickness of the pipe wall.
With contour recognition system, it can automatically identify standard round, oval, square and other special-shaped pipes.
Tubes realize non-inductive and high-efficiency detection, and realize the position deviation of the whole meter section’s cutting accuracy within 0.15mm.

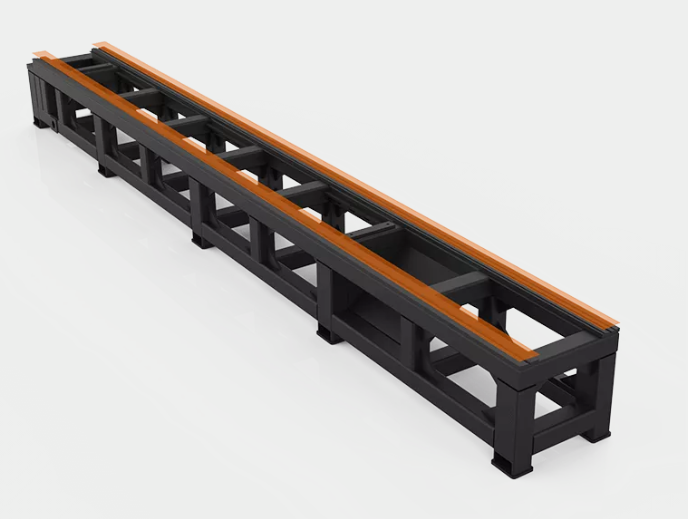

Square tube welding bed. The internal structure adopts aircraft metal honeycomb structure. The bed has high strength and tensile resistance, and the guide surface is more stable. High temperature annealing treatment eliminates the stress generated by welding machine processing. Reduce the loss of laser cutting machine during use, and it will not deform after 30 years of use.
| Mode | T-6023H3 | |||
|---|---|---|---|---|
| Min Diameter | Φ15mm □15mm | |||
| Max Diameter | Φ230mm □160mm | |||
| Laser Power Supply | 1500w, 2000w, 3000w, Higher Power | |||
| Maximum Acceleration | 1G | |||
| Positioning Accuracy | ±0.03mm | |||
| Voltage | 380V 3PH50/60HZ | |||
| Chuck Speed | 60r/min | |||
| Upgrade | Alr Conditioner,Smoke Puriher,Air Compressor,Voltage Reglator,Satety Lignt Curtain | |||
